Word导出工具：poi-tl
1.poi和poi-tl的官网api #
poi：
http://deepoove.com/poi-tl/apache-poi-guide.html
poi-tl:
2.maven依赖 #
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi</artifactId>
<version>4.1.1</version>
</dependency>
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi-ooxml</artifactId>
<version>4.1.1</version>
</dependency>
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi-ooxml-schemas</artifactId>
<version>4.1.1</version>
</dependency>
<dependency>
<groupId>com.deepoove</groupId>
<artifactId>poi-tl</artifactId>
<version>1.7.3</version>
</dependency>
jdk使用的是1.8

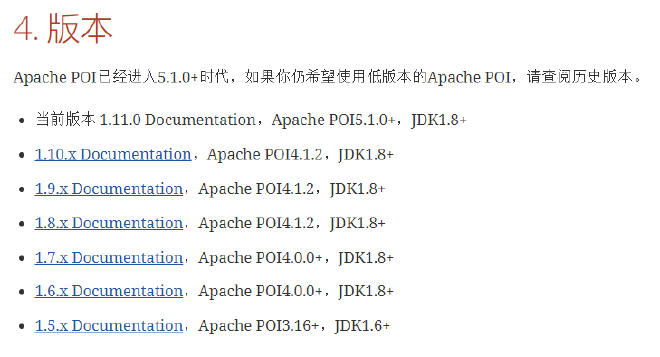

poi-tl不同版本需要不同的poi版本与jdk版本。可以参照官网：
如果版本不匹配会报错（使用1.8.2报错日志待截取），比如
3.poi-tl使用实例 #
前台：
//直接window.open即可
function courtRecord(){
window.open(neu.baseUrl+"/issueDetail/downloadCourtRecord?trialid=" + trialId);
}
后台：
模板（bweam.docx）：
***劳动人事争议仲裁委员会
庭 审 笔 录
时 间：{{date}}
地 点：{{address}}
仲裁员：{{zcy}}
书记员：{{sjy}}
案 号：{{ah}}
案 由：{{ay}}
申请人：{{sqr}}
被申请人：{{bsqr}}
委托代理人：{{wtdlr}}
{{quesAnswList}}
controller:
@ApiOperation("庭审笔录")
@GetMapping(value = "/downloadCourtRecord")
public void downloadCourtRecord(@RequestParam(value = "trialid") String trialid,HttpServletResponse response) {
issueDetailService.downloadCourtRecord(trialid,response);
}
Impl:
@Override
public void downloadCourtRecord(String trialId,HttpServletResponse response) {
Map<String, Object> data = new HashMap<>();
LambdaQueryWrapper<SynBaseinfo> wrapper1 = new LambdaQueryWrapper<>();
wrapper1.eq(SynBaseinfo::getTrialid, trialId);
List<SynBaseinfo> baseinfoList = this.synBaseinfoDAO.selectList(wrapper1);
if(baseinfoList.size()>0){
data.put("date",new SimpleDateFormat("yyyy-MM-dd HH:mm").format(baseinfoList.get(0).getStart_time());//时间
data.put("address","");//地点
data.put("zcy",baseinfoList.get(0).getZcyname();//仲裁员
data.put("sjy",baseinfoList.get(0).getSjyname();//书记员
data.put("ah",baseinfoList.get(0).getCasenum();//案号
data.put("ay",baseinfoList.get(0).getAy();//案由
data.put("sqr",baseinfoList.get(0).getSqr();//申请人
data.put("bsqr",baseinfoList.get(0).getBsqr();//被申请人
data.put("wtdlr","");//委托代理人
}
List<SynIssueDTO> quansList = this.queryIssueListByTrialId(trialId);
//循环数据使用ListRenderPolicy插件
ListRenderPolicy policy = new ListRenderPolicy();
//官方api中给的是：Configure config = Configure.builder().bind("title", new DocumentRenderPolicy().build();
//这里Configure.builder()不好用，遂使用Configure.newBuilder()
Configure config = Configure.newBuilder().bind("quesAnswList", policy).build();
List<WordDTO> detailList = new ArrayList<>();
if(quansList.size()>0){
for (int i = 0; i < quansList.size(); i++) {
WordDTO quansDto = new WordDTO();
List<String> answerList = new ArrayList<>();
quansDto.setQuestion(i + 1 + "." + quansList.get(i).getIssuename();
if(quansList.get(i).getAnswerDTOList().size()>0){
for (int j = 0; j < quansList.get(i).getAnswerDTOList().size(); j++) {
String type = quansList.get(i).getAnswerDTOList().get(j).getAnswertype();
//202111223 先取庭审笔录姓名，如果没有再取姓名
String name = quansList.get(i).getCaseDTOList().get(j).getNote_name();
if(StringUtils.isBlank(name){
name = quansList.get(i).getAnswerDTOList().get(j).getOperatname();
}
String answer = quansList.get(i).getAnswerDTOList().get(j).getAnswer();
switch (type){
case "01":
type = "申请人";
break;
case "02":
type = "申请代理人";
break;
case "03":
type = "被申请人";
break;
case "04":
type = "被申请代理人";
break;
default:
type = "";
}
String answerItem = type + " " + name + "：" + answer;
answerList.add(answerItem);
}
}
quansDto.setAnswerlist(answerList);
detailList.add(quansDto);
}
}
List<Object> list = new ArrayList<>();
Style answerStyle = new Style();
answerStyle.setFontSize(12);
detailList.forEach(wordVO -> {
list.add(new TextRenderData(wordVO.getQuestion());
//此处循环放数据
if (CollectionUtils.isNotEmpty(wordVO.getAnswerlist()) {
for (int i = 0; i < wordVO.getAnswerlist().size(); i++) {
list.add(new TextRenderData(wordVO.getAnswerlist().get(i),answerStyle);
}
}
});
data.put("quesAnswList", list);
//设置response
response.setContentType("application/msword");
response.setHeader("Content-disposition", "attachment;filename=CourtRecord.docx");
//取绝对路径
String path = ClassUtils.getDefaultClassLoader().getResource("").getPath();
XWPFTemplate template = XWPFTemplate.compile(path+"/file/bweam.docx",config)
.render(data);
//写在()里try with resources自动关流
try (OutputStream os = response.getOutputStream();
BufferedOutputStream bos = new BufferedOutputStream(os);){
template.write(bos);
} catch (Exception e) {
e.printStackTrace();
}finally {
//使用poitl工具类关流
PoitlIOUtils.closeQuietlyMulti(template);
}
}

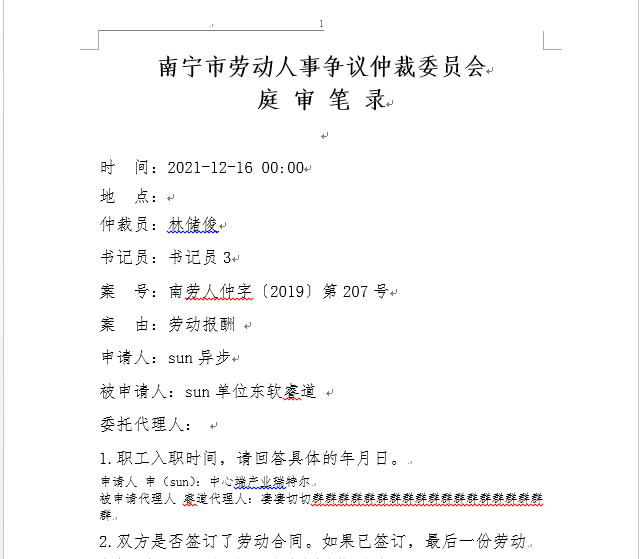

导出结果：
4.poi-tl遍历图片 #
使用版本：
<dependency>
<groupId>com.deepoove</groupId>
<artifactId>poi-tl</artifactId>
<version>1.10.1</version>
</dependency>
代码：
@Data
public class WordVO {
private List<PictureRenderData> picture;
private String problem;
private String reason;
}
import com.deepoove.poi.XWPFTemplate;
import com.deepoove.poi.config.Configure;
import com.deepoove.poi.data.PictureRenderData;
import com.deepoove.poi.data.TextRenderData;
import com.deepoove.poi.policy.ListRenderPolicy;
import com.twy.entity.WordVO;
import org.apache.commons.collections4.CollectionUtils;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
import java.io.IOException;
import java.io.InputStream;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
@RestController
public class TestController {
@GetMapping("/download")
public void download() throws IOException {
Map<String, Object> map = new HashMap<String, Object>();
InputStream inputStream = Thread.currentThread().getContextClassLoader()
.getResourceAsStream("template/test.docx");
ListRenderPolicy policy = new ListRenderPolicy();
Configure config = Configure.builder().bind("pictures", policy).build();
List<WordVO> detailList = new ArrayList<>();
WordVO one = new WordVO();
WordVO two = new WordVO();
one.setProblem("问题测试1");
two.setProblem("问题测试2");
one.setReason("原因测试1");
two.setReason("原因测试2");
List<PictureRenderData> pList1 = new ArrayList<>();
List<PictureRenderData> pList2 = new ArrayList<>();
String location = System.getProperty("user.dir") + "/poi-tl/src/main/resources/";
pList1.add(new PictureRenderData(100, 120, location + "img/1.jpg");
pList1.add(new PictureRenderData(100, 120, location + "img/2.jpg");
pList2.add(new PictureRenderData(100, 120, location + "img/3.jpg");
one.setPicture(pList1);
two.setPicture(pList2);
detailList.add(one);
detailList.add(two);
List<Object> list = new ArrayList<>();
detailList.forEach(wordVO -> {
list.add(new TextRenderData(wordVO.getProblem());
list.add(new TextRenderData(wordVO.getReason());
if (CollectionUtils.isNotEmpty(wordVO.getPicture()) {
list.addAll(wordVO.getPicture();
}
});
map.put("pictures", list);
XWPFTemplate template = XWPFTemplate.compile(inputStream, config).render(map);
template.writeToFile(location + "result/test.docx");
}
}

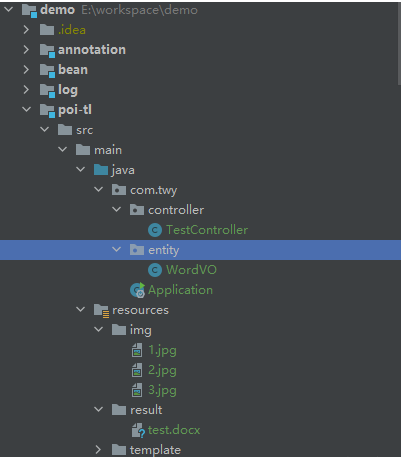

目录结构：

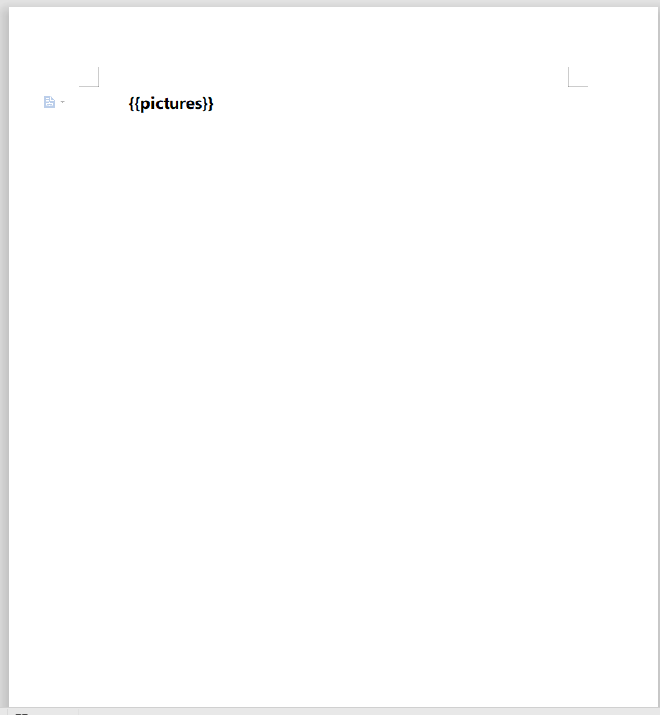

word模板：

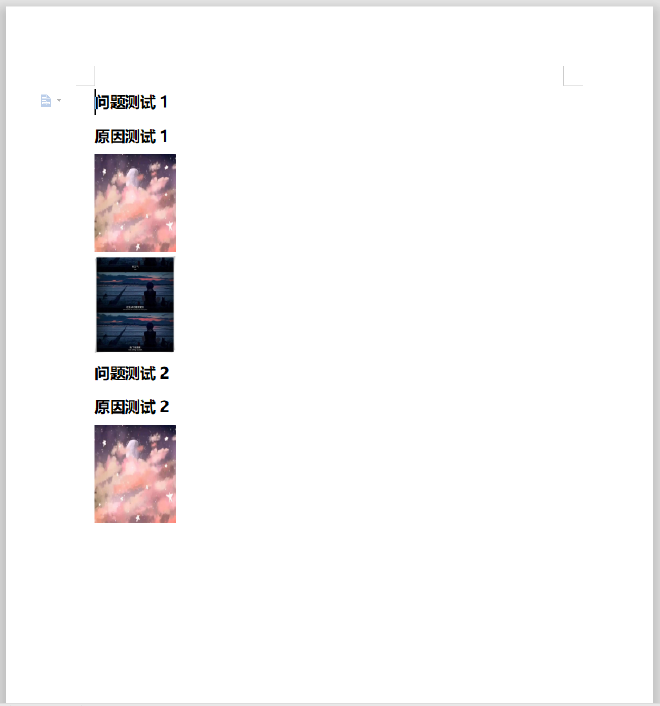

导出结果：
